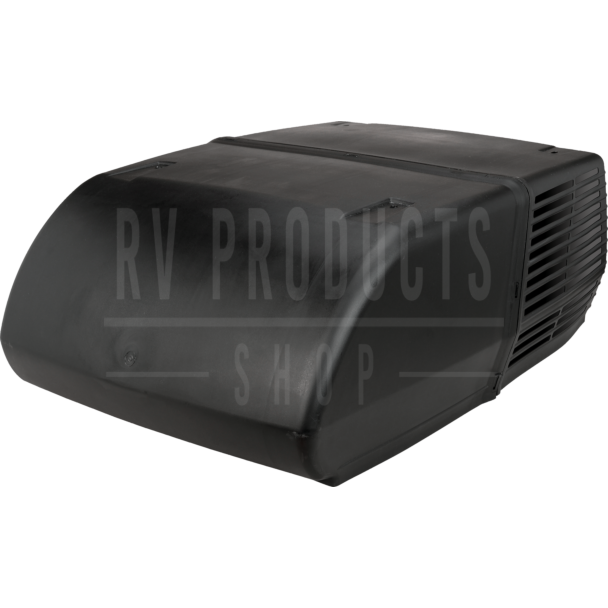

With the Coleman®-Mach® HP²™ High Performance Heat Pump you get an economical, electric source of heat and a high performance air conditioner in one sleek package.
The HP²™ cools exceedingly well with a powerful 15,000 BTU nominal cooling capacity. When a chill is in the air, a special reversing valve enables the cooling system to convert to a heating system. In fact, with the HP²™, you can put two-and-a-half times more heat into your RV than you can with an electric heat strip.
Now you can get an economical, electric source of heat And a high performance air conditioner in one!
• The HP²™ with a free-delivery ceiling assembly is ideal for use in
folding camping trailers.
• For ducted applications, you can set the thermostat for your HP²™ to either electric or gas heat. In the electric heat setting, the HP²™ will be your primary heat source as long as the vehicle interior temperature does not drop 5 degrees below thermostat setpoint. If interior vehicle temperature does drop 5 degrees below thermostat setpoint, the thermostat will automatically activate gas furnace operation. The gas furnace operation continues until the thermostat setpoint has been satisfied, after which the HP²™ will again automatically become the primary heat source.
• In Heat Pump mode, the compressor will shut down between 40ºF and 45ºF due to lack of heat in the outside air.
• New two piece inter-locking paintable shrouds include condenser coil protection.
• All-copper tubing has gas-flux brazed joints which are more corrosion-resistant than welds. The copper tubing is rifled inside to create turbulence in the coolant, enhancing the system's ability to dissipate heat.
• The fan motor is mounted directly to the bulkhead to fix the relative position of the motor, blower wheel and ensures a free turning action.
MSRP | $1,699.99 |
---|---|
Mfg Part # | 48004-069 |
Product Literature | DOWNLOAD |
Limited 2 Year AC Warranty | DOWNLOAD |
Operation and Maintenance | DOWNLOAD |
Evaluating AC Performance | DOWNLOAD |
Installation Instructions | DOWNLOAD |
Parts List | DOWNLOAD |
Data Sheet | DOWNLOAD |
Specifications |
|
Height | Standard (13.8") |
Weight (lbs) | 89 |
BTUs | 15,000 |
Heat Strip BTUs | 5,600 |
Electrical Rating | 115 VAC, 60Hz, 1 Phase |
Full-Load Cooling Amps | 14.8 |
Full-Load Heating Amps | 15.4 |
Standard Running Watts | 1,640 |
Running watts w/ heat strip | 1800 |
Air Delivery CFM | 320 |
Color | Textured Black |
Heat Pump | Yes |
Power Saver | No |
Condensate Pump | No |
Soft Start | No |
